32mm Length Cam Dowel Screw OEM For Flat Pack Furniture Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Blue Zinc Plated | Material: | Cold Rolled Steel |
|---|---|---|---|
| Torque: | 12N | Length: | 32mm |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | Furniture Repair |
| Application: | Desk Adjustments | Product Type: | Furniture Connecting Fitting |
| Highlight: | 32mm Length Cam Dowel Screw,32mm Length cam dowel screwfix,OEM Cam Dowel Screw |
||
Product Description
32mm Length Cam Dowel Screw OEM For Flat Pack Furniture Assembly
Product Specifications
| Attribute | Value |
|---|---|
| Finish | Blue zinc plated |
| Material | Cold rolled steel |
| Torque | 12N |
| Length | 32mm |
| Panel supported | For 15+MM thickness panel |
| Usage | Furniture Repair |
| Application | Desk Adjustments |
| Product Type | Furniture Connecting Fitting |
Technical Documentation
Download Product Catalog (PDF)
Product Images
Product Overview

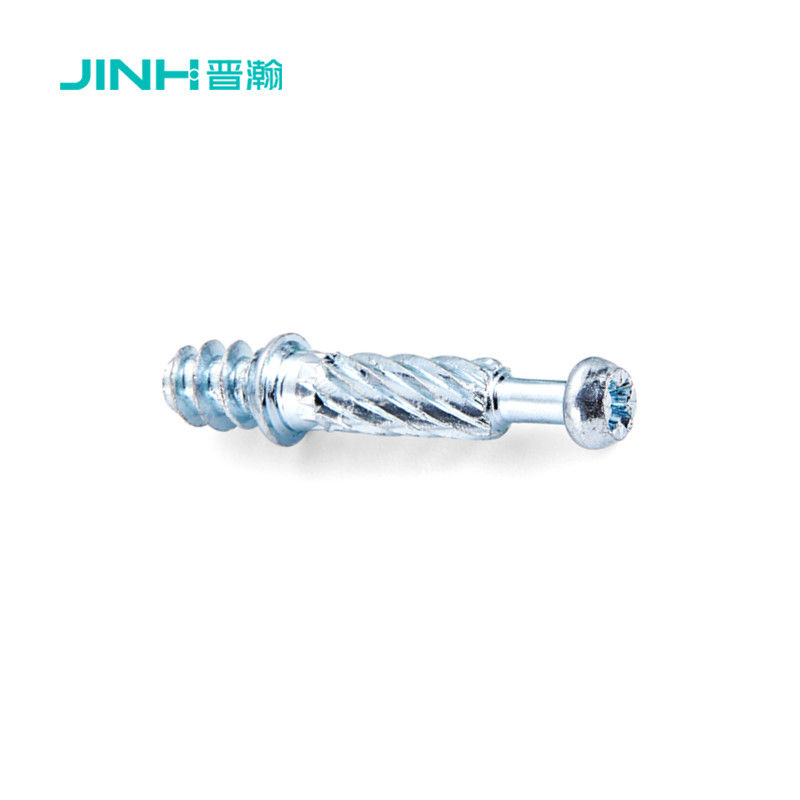

The JH-2170 Cam Connector Screw is a specialized minifix bolt designed for panel furniture assembly. With a 32mm length and 25mm hole spacing, it's engineered for joining furniture panels 15mm thick or more. Made from cold-drawn carbon steel with blue zinc electroplating, it offers exceptional strength and corrosion resistance.
Key Features
- Premium Material: Cold-drawn carbon steel construction ensures superior mechanical properties
- Protective Finish: Environmentally-friendly blue zinc electroplating provides excellent corrosion resistance
- Enhanced Grip: Three-dimensional twisted texture improves holding power and prevents loosening

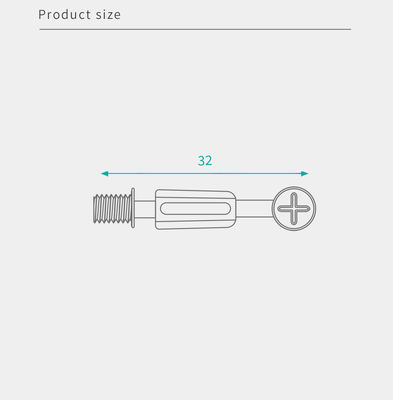

- Precision Dimensions: 32mm length with 25mm hole spacing for standard furniture assembly
- Easy Installation: Self-tapping threads create their own thread in pre-drilled holes
Applications
- Panel Furniture Assembly: Ideal for desks, cabinets, shelves and other heavy-duty furniture
- Modular Furniture: Perfect for systems requiring frequent disassembly and reassembly
- DIY Projects: Provides sturdy fastening for custom furniture projects
- Commercial Furniture: Essential for durable office and commercial furniture construction
- Furniture Repair: Excellent for tightening loose joints and restoring structural stability
Technical Specifications
| Salt Spray Test | 24H/48H |
| OEM/ODM | Available |
| Thread Type | Automatic rod with self-tapping threads |
Want to Know more details about this product
