40mm Length Customized Screwfix Cam Dowel Furniture Cam Screw
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Black Nickel Plated | Material: | Cold Rolled Steel |
|---|---|---|---|
| Torque: | 12N | Length: | 40mm |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | Custom Cabinetry |
| Application: | Quick Disassembly | Product Type: | Furniture Fixing |
| Highlight: | 40mm Length Furniture Cam Screw,Customized Furniture Cam Screw,Customized Screwfix Cam Dowel |
||
Product Description

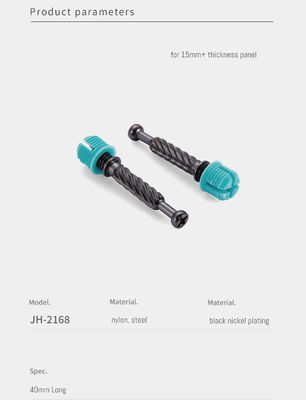

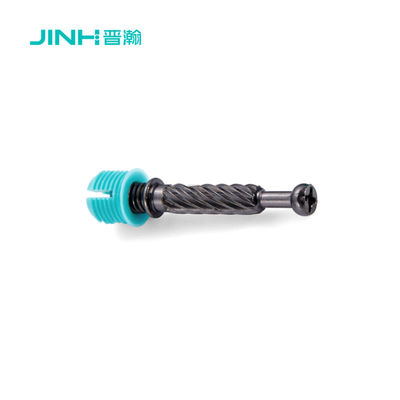

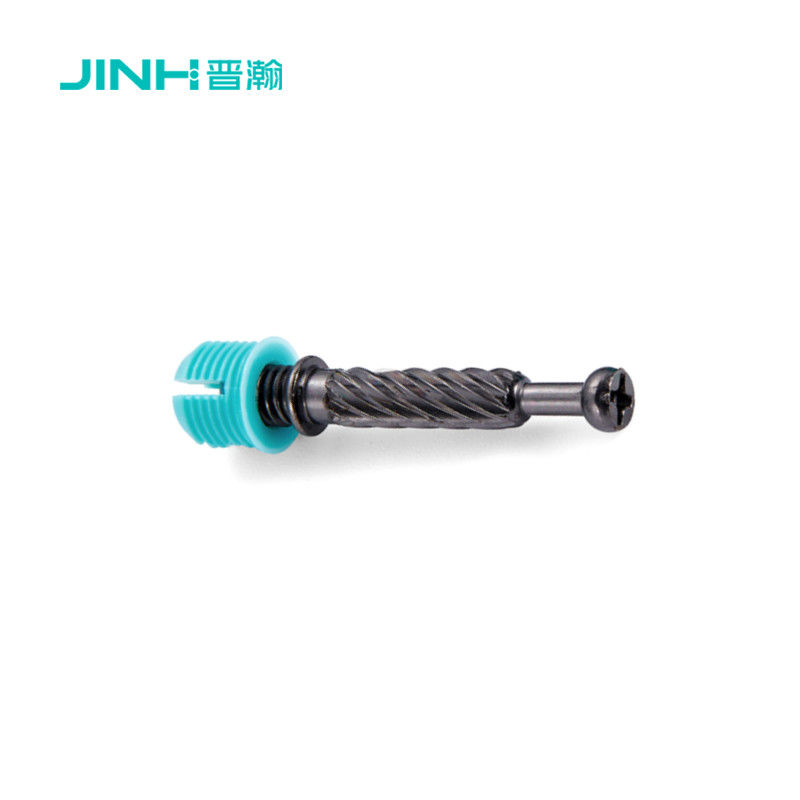

40mm Length Customized Screwfix Cam Dowel Furniture Cam Screw
Product Specifications
| Attribute | Value |
|---|---|
| Finish | Black nickel plated |
| Material | Cold rolled steel |
| Torque | 12N |
| Length | 40mm |
| Panel supported | For 15+MM thickness panel |
| Usage | Custom Cabinetry |
| Application | Quick Disassembly |
| Product Type | Furniture Fixing |
Technical Parameters
| Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM/ODM | Available |
| Material | Cold Rolled Steel + Nylon |

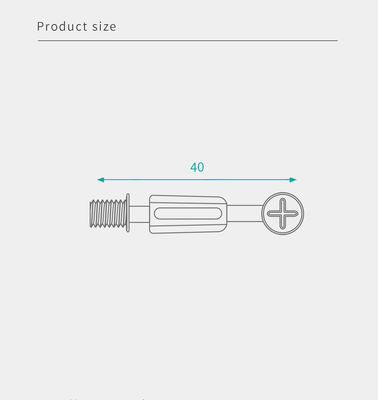

| Length | 40mm |
| Torque | Up to 12N |
| Center hold distance | 33mm |
| Usage | For panel type furnitures |
| Finish | Black Nickel Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Documentation
Download Product Catalog (PDF)
Product Images
Product Description
The JH-2168 Customized Minifix Connecting Bolt is a high-quality fastener designed for the assembly of modular furniture. This innovative solution combines a precision-engineered carbon steel shaft with a nylon spreading dowel, creating a robust and reliable connection system.
Key Features
- Material Composition: Cold-drawn carbon steel rod with nylon four-lobe expansion component for strength and secure anchoring
- Surface Treatment: Black nickel electroplating for enhanced corrosion resistance and aesthetic appeal
- Surface Texture: Three-dimensional twisted pattern increases friction and holding power
- Design Advantage: Threaded metal rod expands nylon dowel for tight fit and superior load-bearing capacity

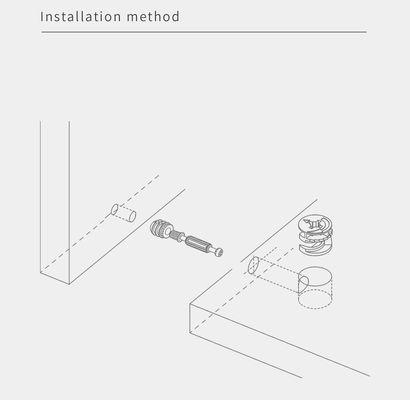

- Ease of Installation: Quick assembly without specialized tools
Applications
Ideal for board-type furniture including cabinets, shelves, desks, and bed frames. Particularly suited for applications with frequent movement or heavy loads in both residential and commercial settings.
