Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture

Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture
Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture

Large Image :  Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture

Product Details:
Place of Origin: China
Brand Name: JINHAN
Certification: ISO 9001:2015
Model Number: JH-2161
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pcs
Price: US $0.001-0.1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/P
Supply Ability: 5000000 Pieces per Month
Contact Now Chat Now

Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture

Description
Place Of Origin: Guangdong, China Sea Port: Shenzhen
Brand Name: JINHAN Length: 40mm
Panel Supported: For 15+MM Thickness Panel Usage: One-Sided Installation
Application: Upholstery Support Product Type: Furniture Cabinet Connector
Highlight:

Cold Rolled Steel Minifix Connecting Bolts

,

40mm Length Minifix Connecting Bolts

,

40mm Length cam bolts for furniture

Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture
Product Attributes
Attribute Value
Place of Origin Guangdong, China
Sea port Shenzhen
Brand Name JINHAN
Length 40mm
Panel supported for 15+MM thickness panel
Usage One-Sided Installation
Application Upholstery Support
Product Type Furniture Cabinet Connector
Product Details
Download Product Catalog (PDF)
Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture 0 Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture 1 Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture 2 Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture 3
Technical Parameters
Technical Parameter Value
Product Name Minifix Spreading Bolts
OEM Available
ODM Available

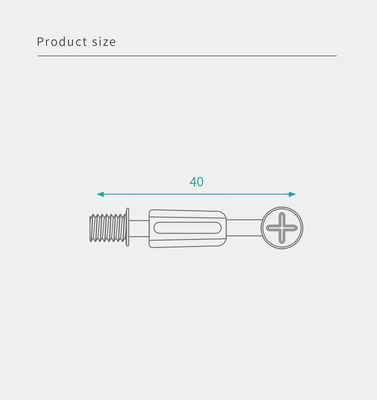

Length 40mm
Torque Up to 12N
Center hold distance 33mm
Usage Joining panels in wardrobe closets
Finish Blue Zinc Plated
Assemble Easy
Salt Spray Test 24H/48H
Product Description

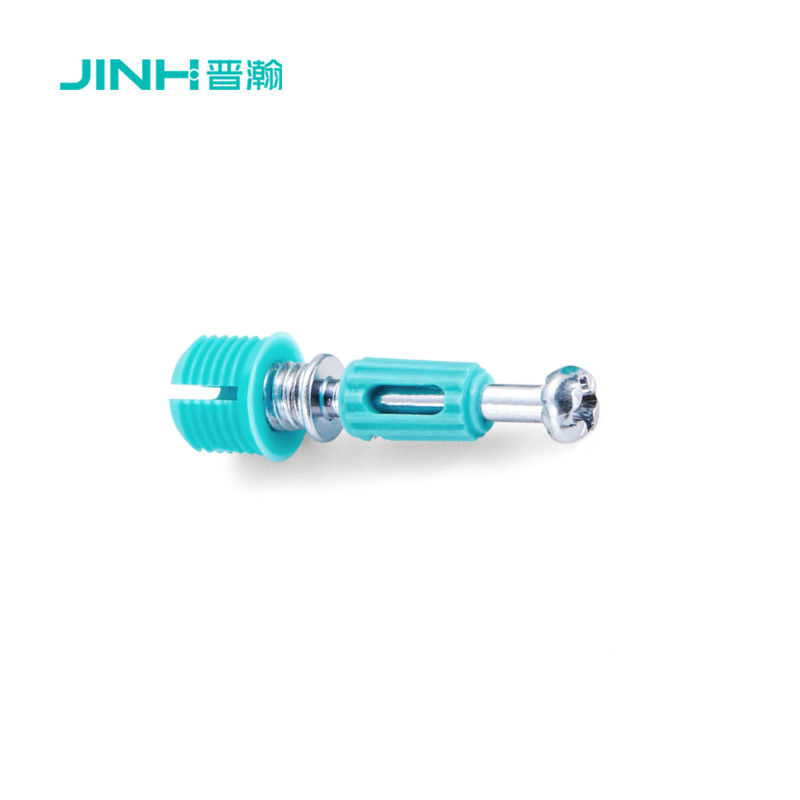

The JH-2161 Cold Rolled Steel Cam Bolt Screw, also known as a Minifix Bolt, is an innovative fastening solution designed for the assembly and connection of wooden panels in furniture construction. With a total length of 40mm, this robust component features a cold-drawn carbon steel shaft that ensures high tensile strength and durability. The Minifix Bolt is complemented by a nylon spreading dowel with a four-leaf design, which facilitates easy expansion for a secure fit. Additionally, it includes a polypropylene (PP) sleeve with longitudinal grooves to enhance grip and prevent slippage. The surface treatment of eco-friendly blue zinc plating not only adds an aesthetic appeal but also provides excellent corrosion resistance.
Key Features
  • Material Strength: Constructed from cold-drawn carbon steel, offering superior strength and reliability.
  • Expansion Mechanism: The nylon spreading dowel with a four-leaf design ensures maximum expansion and a tight hold within the drilled hole.
  • Enhanced Grip: The PP plastic sleeve, featuring longitudinal grooves, improves the friction between the bolt and the material, reducing the risk of loosening over time.
  • Corrosion Resistance: Treated with an eco-friendly blue zinc plating, providing long-lasting protection against rust and corrosion.
  • Ease of Installation: The Minifix Bolt's design allows for simple and quick installation without the need for additional tools or adhesives.
Applications
  • Furniture Assembly: Ideal for connecting and assembling wooden panels in board-type furniture, such as cabinets, shelves, and tables, especially where the thickness of the material exceeds 15mm.
  • Interior Fittings: Suitable for securing decorative elements and functional components in interior design projects.
  • DIY Projects: Perfect for DIY enthusiasts looking for a reliable and efficient fastening system for their custom furniture and fixture projects.
This versatile and durable Minifix Bolt is a must-have for any project requiring strong, dependable connections in wooden materials.
Cold Rolled Steel Minifix Connecting Bolts 40mm Length For Panel Type Furniture 4
